STUDFLEX VIBRATION ISOLATION PADS

This innovative design is the most adaptable and effective area isolation product available. It is capable of protecting entire buildings from Railway Vibration whilst smaller section pads can be used to isolate building Air Conditioning plant.

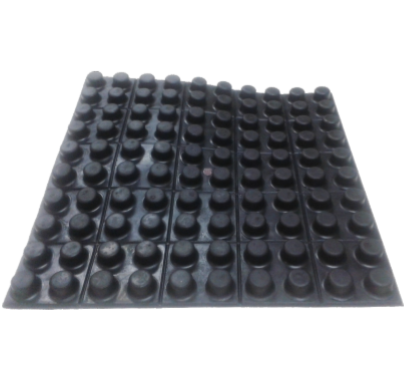

Though pads are made in one standard size of 500mm x 500mm x 25mm thick, a unique feature of the Studflex design is the moulded segments which allow the pad to be cut by knife or scissors into individual pads of 4 stud sections - ideal for positioning directly beneath machine feet or base frames.

Signature

DESIGN FEATURES

  • Available in various first grade Natural Rubber (N) & Oil Resistant Nitrile Rubber (B) compounds identified by a colour spot
  • Available in hollow and solid designs to cover a wide range of applied loads
  • Static deflections of 4 mm with loads of up to 8175 kg per pad (500 x 500) single layer
  • Also available in 2 or 3 layer stacks with steel interleaves for increased deflection of 8 mm & 12 mm respectively and corresponding lower natural frequencie

TYPICAL APPLICATIONS

  • Full Area Isolator for laying beneath concrete foundation block
  • Isolation of low-rise buildings from Railway and other vibration and noise
  • In segments for use as unit isolator under machine frame
  • With Inertia Bases type IPF for Pumps, etc.
  • Secondary Isolation of Air Handling Units
  • Isolation of Sensitive Equipment
  • Steelwork and partition wall isolation
  • Acoustic Floating Floors for Cinemas, Recording Studios, and Plant Rooms (See Leaflet: Floating Floors, Type SRS)
