Square Cell Pads Square Cell Pads Design

Square Cell Pads

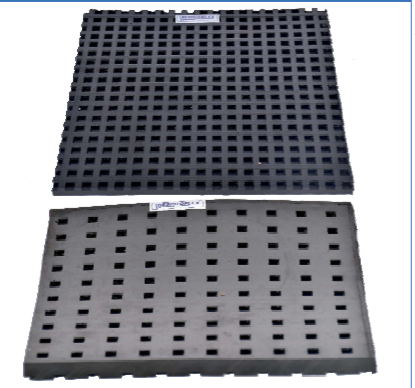

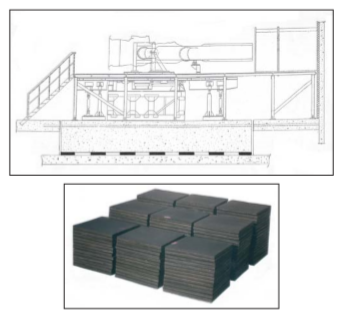

Scientifically designed resilient pads are moulded with high grade blend of Natural and Synthetic Rubber for general applications. The pad surfaces on both sides have moulded recessed offset-cells to allow flow of rubber when under load while maintaining lateral stability. This design eliminates the shape factor usually associated with elastomeric pads and provides positive grip to machine foot and foundation when under load Pads can be used in any shape size/thickness/number of layers. They have proved ideal for isolating all the six degrees of vibration and shock and effectively reducing structure borne noise. Pads are very effective for protecting precision equipments and instruments from external sources of Vibration and Shock caused by operation of heavy machines, mechanical handling equipment, forging hammers and even passing traffic.

  • Greater deflection per unit area than cork, felt or similar materials
  • Higher and uniform stress. Will not crumble like cork under prolonged Vibration and heavy loads
  • Highly resilient with exceptional damping.
  • Extremely low heat build-up
  • Higher sound insulation than metal springs.
  • Higher deflection than a solid rubber sheet of same thickness
  • Greater lateral stability.
  • Continuous bearing area on both sides of the Pad

TYPICAL APPLICATIONS

  • AIR CONDITIONING EQUIPMENTS
  • AUXILIARY PLANT EQUIPMENTS
  • BUSINESS MACHINES
  • BLOWERS
  • COMPRESSORS
  • ELECTRIC APPLIANCES
  • FANS
  • GENERATING SETS
  • GUILLOTINES GRINDERS
  • HEADERS
  • HEATING AND VENTILATING EQUIPMENTS
  • INERTA BLOCKS
  • INSTRUMENTS PANELS
  • IMPACT MACHINES
  • LABORATORY EQUIPMENTS
  • MACHINE TOOLS
  • PUMPS
  • PRINTING MACHINES
  • PRESSES
  • TEXTILE MACHINERY
  • TRANSFORMERS ETC ETC
