SPRING & RUBBER HANGERS

Hangers effectively Isolate transmission of Vibration and Structurally Sound.
Suspended Accoustical Ceiling have become an essential part of modern structures-Vibration & Sound waves emanating from the rest of the building are prevented from reaching the Accoustical Ceiling.

Hangers prevent many installation errors by permitting degree of freedom of movement of piping thus frequently eliminating the need of Flexible Hose Connections.
Hangers will also take care of expansion problems of riser Pipe lines.

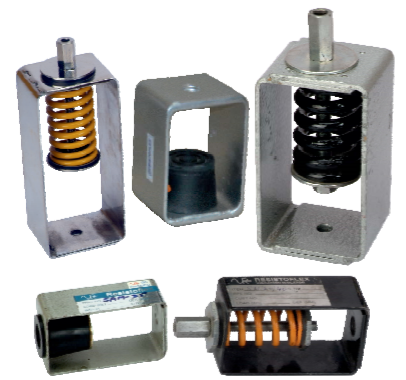

Wide range of Hangers are available with Helical Coil Springs for Low frequency applications, Rubber-in-Shear for absorption of Sound and Shock with Combination of Coil Spring & Rubber-in Shear for critical areas.

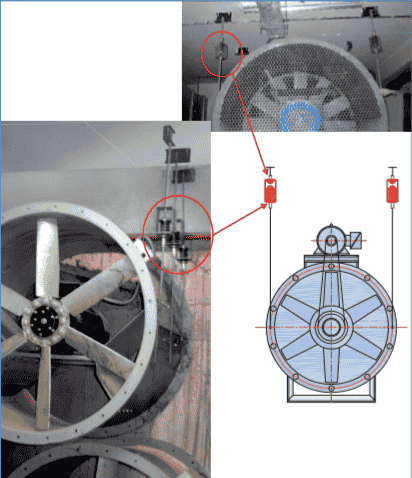

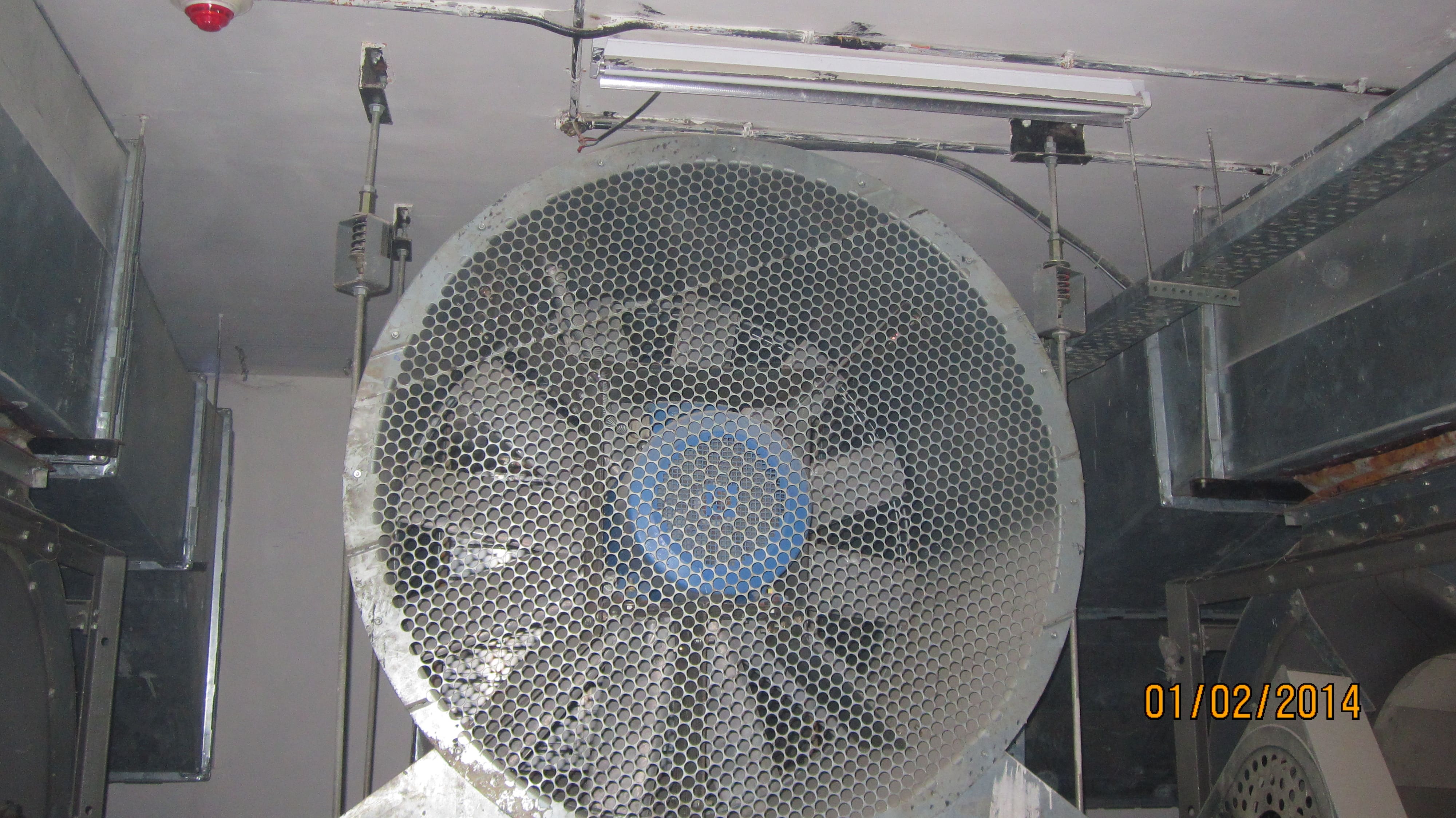

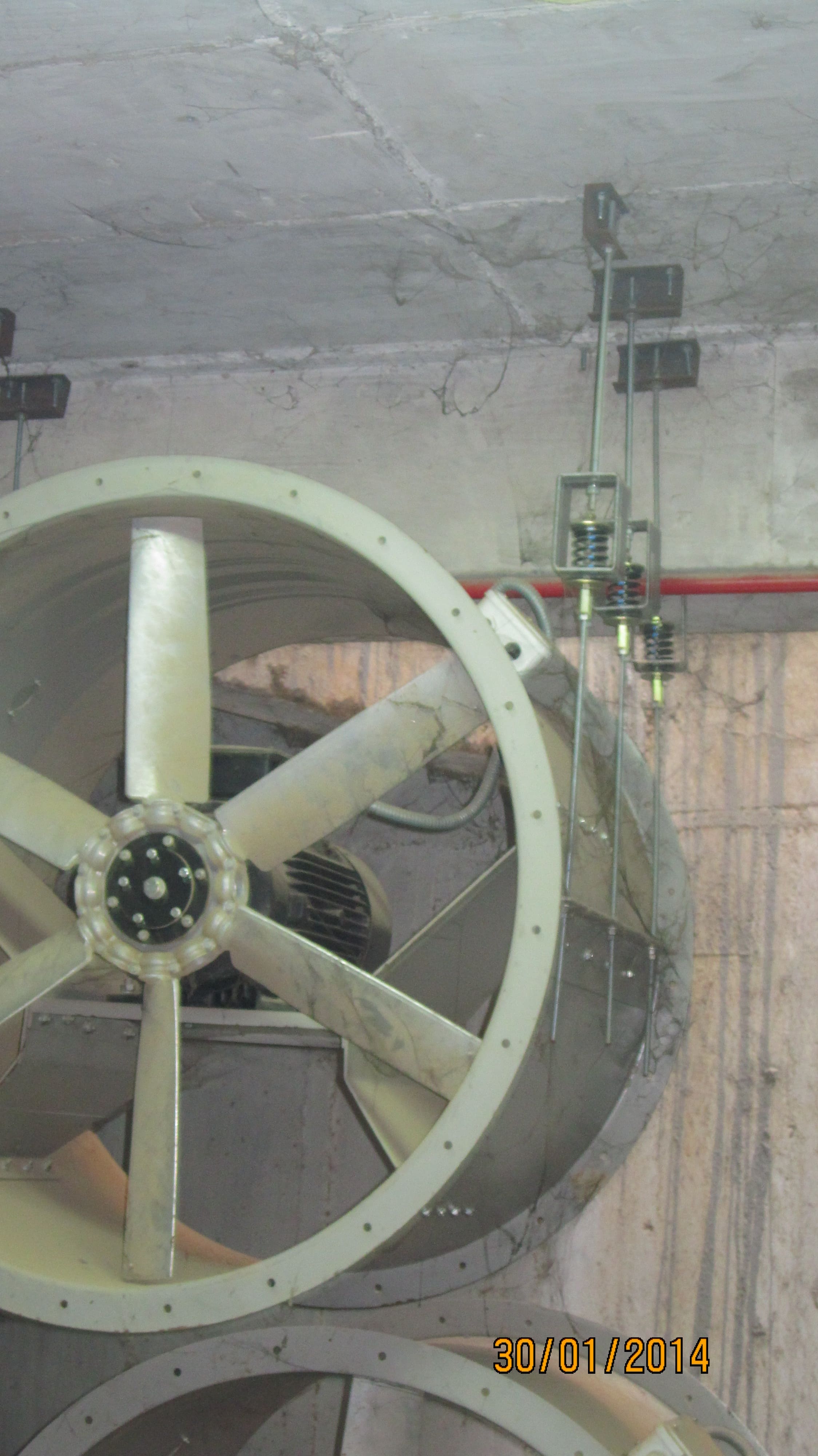

Hangers are sturdily built for long rugged service with any combination of simple Rods on top and / or bottom, straps, 'J' Hooks to clevis, trapeze or roller system.

Signature Signature
DESIGN FEATURES
  • Steel frame tested to 5x rated load. Other steel parts are zinc plated including ACH casing.
  • Colour coded steel springs with nominal deflections up to 50mm, laterally stable with 50% overload capacity.
  • Rubber inserts for high frequency attenuation on type SH, also to prevent drop-rod from contacting hanger frame.
  • Failsafe steel overload washers supplied with Rubber Hangers.
  • Captive assembly with drop-rod connector on type SH allows precompression of spring prior to installation if required.
  • 15° angular misalignment capability.
  • Stud or wire fixing on type ACH.
