HOUSED SPRING MOUNTINGS
HOUSED SPRING MOUNTINGS consist of high deflection, colour coded steel springs assembled into telescoping cast housings separated by Neoprene Rubber inserts complete with built-in levelling bolt and thick Neoprene acoustical friction pad to eliminate bolting down. Rubber inserts isolate sound weves generated in springs, limit movement during start-up and shut down and provide minimum damping in all directions to allow springs to function independently. Ideally suited for high horizontal thrust applications and low frequency vibration problems.
The benefits of a combined rubber and steel housing for the spring have helped establish the ES and ECS mountings as industry standards, accepted by specifiers, equipment manufacturers, and mechanical services installers alike
DESIGN FEATURES

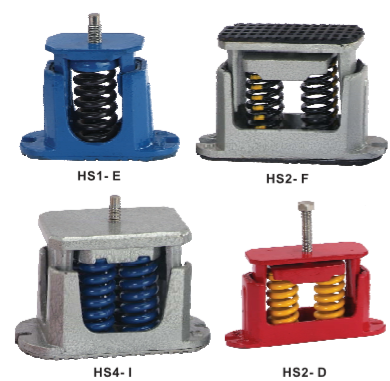

Mountings are available in three versions with and without dampers.
EXTERNAL LEVELLING (SUFFIX : E)
for well centered equipment mounting holes with access for levelling from avove (standard).
INTERNAL LEVELLING (SUFFIX : l)
are used when extarnal setting is not possible. Mounting is aligned with equipment mounting hole and levelled by an internal bolt.
FREE STANDING (SUFFIX : F)
has a nonskid friction rubber pad cold bonded to top surface and an internal levelling bolt.
DAMPED MOUNTING (SUFFIX : D)
All versions also available with built-in adjustable Dampers. Damping is varied by altering the pressure on the rubber insert by adjusting the dampening bolt. Tightening the dampers reduces vertical movement, limits bounce, controls side motion and rock. Wear is negigible as damping is provided by the viscous distortion of the Neoprene inserts ratherthanbyfriction.
