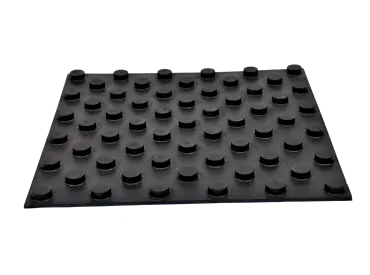

COMPRASSION STUD PAD (CSP)

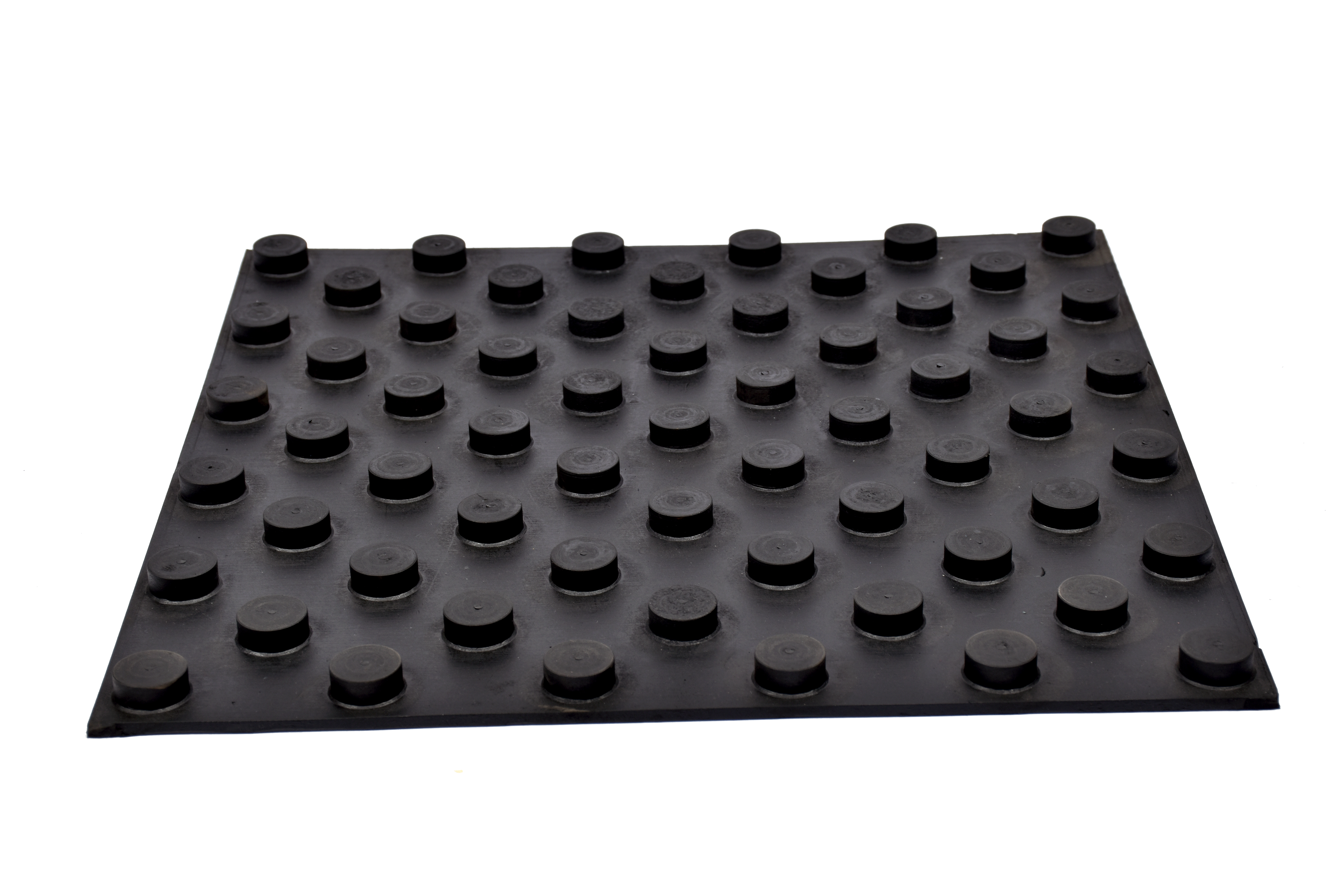

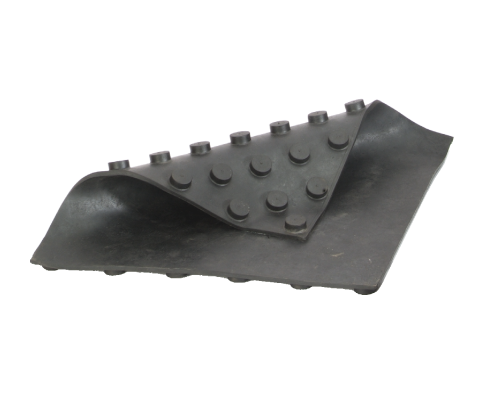

Circular Studs on one side & plain on other side

Each system is individually designed and analyzed to ensure that the correct spring stiffnesses, system damping and masses are provided to permit proper operation of the mounted equipment.

Pads work in compression & when fully loaded within their rated capacity, the static deflection per layer is 2 mm ± 15% which will give satisfactory insulation against frequencies above 1400 CPM.
Pads can also be conveniently used in 2, 3 or even more layers by interfacing with steel plates for added deflection for isolation of very low disturbing frequencies.
Pads offer the most effective and easily applied Vibration / Shock isolating resilient material which actually simplifies casting of massive inertia block in-situ.
Maximum load per sq. meter is upto 22000 Kgs. Any overall weight can be supported as long as the unit loading on Pads is within their rated capacity.

Signature Signature
  • Rated unit loading upto: 2.2 Kgs/Cm2
  • Static Deflection: 2mm nominal

TYPICAL APPLICATIONS:

Passive Isolation : Pads reduce ground borne Vibration & Noise from Forging Hammers, Heavy Machinery & even passing traffic for giving protection from external disturbances to :

  • Anechoic Chambers
  • Jig Borers
  • Lathes & other Machine Tools
  • Precision Machines
  • Roll Grinders
  • Sensitive Apparatus, etc.

Active Isolation : Pads reduce transmission of Vibration, Noise & Shock from a wide variety of heavy plant & machinery including :

  • Blowers
  • Compressors
  • Diesel Generating Sets
  • Engine Test Beds
  • Fans
  • Gas & Steam Turbines
  • Pumps, etc.

Made in one standard size of 390 mm X 390 m X 15 mm thickness in 2 closely controlled spring rates (stiffness).
