Circular Vibration & Shock Isolator - Resistoflex

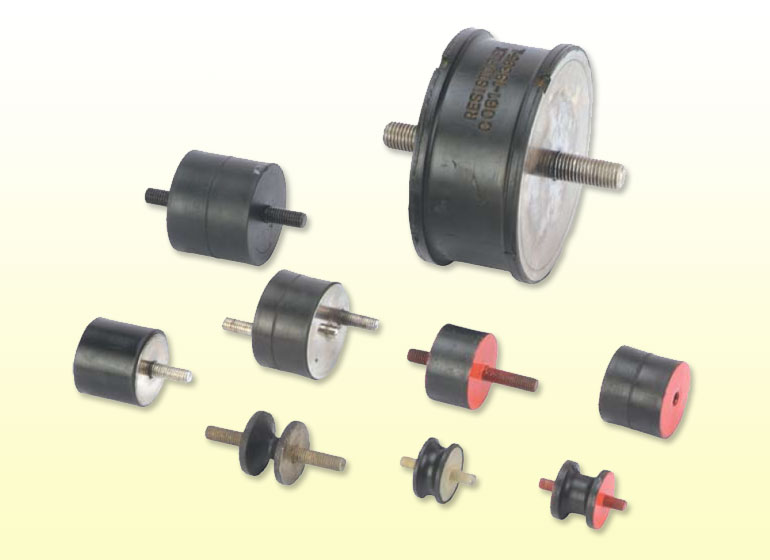

RESISTOFLEX CIRCULAR ISOLATORS

also known as BOBBIN MOUNTINGS, are simple low cost versatile Isolators of rugged construction for use in wide variety of applications to ease misalignment problems; permit relative movement as in vibratory rollers, shifting & grading machines; as well as a mounting to protect instruments & light equipments and Isolate heavy machines from the harmful effects of Vibration, Shock and Noise.

Signature

 LOAD                                             DEFLECTION

Kg To Over 800 Kgs.            Upto 15 Mm

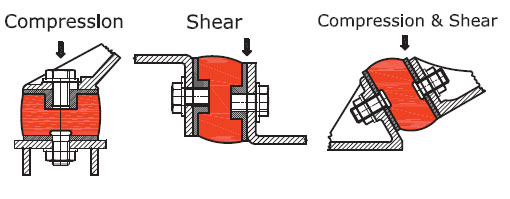

Isolators can be loaded in :

Typical Applications

  • Air Conditioning Equipment
  • Blower
  • Business Machines
  • Compressors
  • Control Panel
  • Engines
  • Fans
  • Generators
  • Laboratory Instruments
  • Pumps, etc.

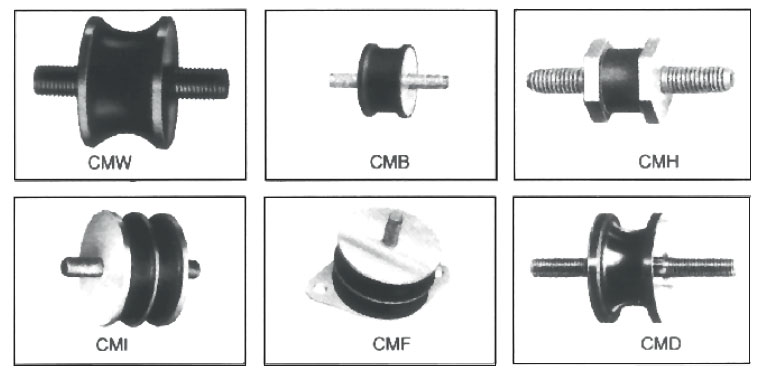

Variants
