Anti Vibration Turret Rubber Mounts by Resistoflex

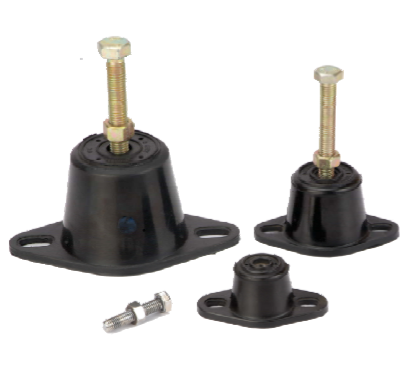

TURRET RUBBER MOUNTS

RM rubber mountings are designed to provide superior attenuation of medium to high frequency vibration and noise emanating from a wide range of motor driven machines particularly axial and centrifugal fans. High resilIence rubber with low dynamic to static stiffness ratio ensures maximum efficiency, good creep performance and long service life.

Signature Signature

DESIGN FEATURES

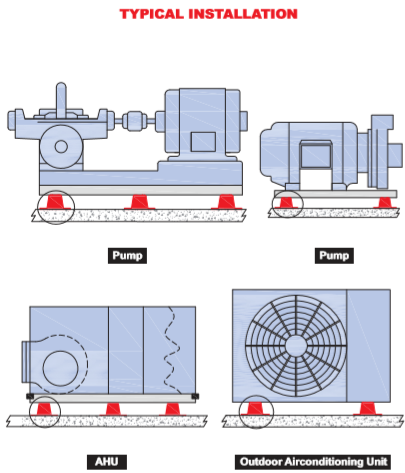

  • Axial & Centrifugal Fans
  • Air Handling Units
  • Air Conditioning Equipment
  • Packaged Air Conditioners
  • Floating Floors
  • Generators
  • Mobile Equipment
  • Pumps
  • Refrigeration Plants
  • Rotary and Multi Cylinder Compressors

TYPICAL APPLICATIONS

  • Moulded in first grade natural rubber with integral steel base and upper fixing boss
  • Also available with oil & environment resistant durable Neoprene
  • Manufactured in three sizes, each available in three rubber compounds identified by a colour spot
  • Static deflections of up to 8 mm with loads from 5 kg to 400 kg
  • Optional height adjusters also available
