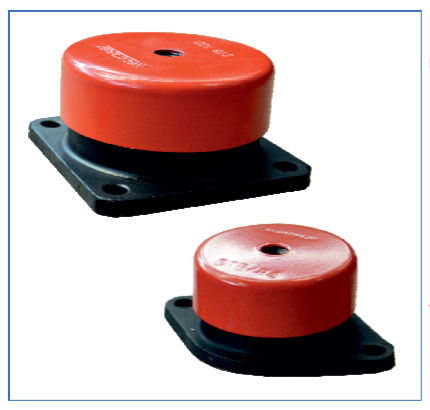

Stabiflex Vibration & Shock Isolator Rubber Mount - Resistoflex

HIGH AXIAL FLEXIBILITY UNIFORM RADIAL STIFFNESS

Signature

DESIGN

  1. Annular Rubber Ring
  2. Inner Metal Core with tapped hole to take a bolt for supporting machinery.
  3. Outer Metal Ring with holes provided for bolting wherever required.
  4. Protruding Rubber Ring acting as a non-skid pad for direct floor mounting without fastening bolts.
  5. Painted Steel Cap for oil and corrosion protection.
  6. Rubber Seal

ADVANTAGES

  • Eliminates up to 98% vibrations
  • Accepts large transitory shocks
  • 2-3 times stiffer radially than axially
  • Quick and easy installation
  • Flexible plant layout
  • Fixing by bolts and rebound stop facility for mobile applications
  • Oil & corrosion protection
Ideally suited to support machinery susceptible to Radial Forces:

Machinery fixed to Lorries Railway Wagons or Ships etc.

TYPICAL APPLICATIONS

  • Extensively used for supporting engine and operator cabin in hydraulic excavators and other earth-moving machinery.
  • Supports large motor compressor units, generators, tanks, diesel engines, reducers, etc., on ground and mobile equipment.
  • Used under metal working machinery, textile machinery, refrigeration & air conditioning equipment, etc.
