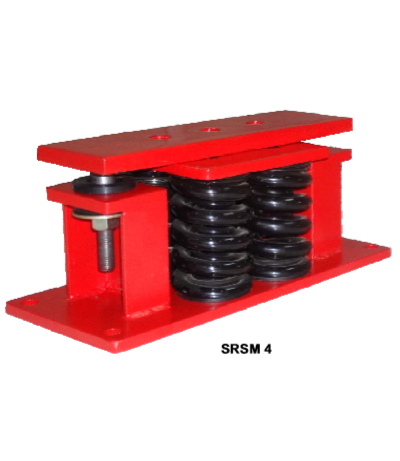

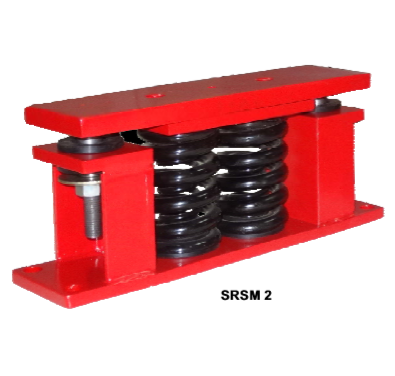

SEISMIC RESTRAINED SPRING MOUNTS

Resistoflex Seismic Restrained Spring Mounts are designed for Vibration Isolation and Seismic Restraint of equipments subjected to weight variations and large external forces.
The mounts are designed to provide a high 'G' SEISMIC RESTRAINT IN ALL DIRECTIONS WITH BUILT IN SNUBBERS.
The mounts reduce transmission SRSM of low frequency machinery vibration to a building structure to avoid physical damage or annoyance to the occupants.

SRSM Mounts are ideal for large or heavy equipments mounted on structural frames or concrete bases on roof tops even in wind prone areas or active seismic zones due to the integral vertical & lateral restraints. Equipments with large volumes of liquid benefit because during "draining down" upward movement is restricted thus avoiding damage to equipment, pipework and electrical connections.

Signature Signature

DESIGN FEATURES

  • High strength all steel construction with epoxy coated finish for corrosion resistance and zinc plated fixings
  • Large laterally stable colour coded epoxy coated helical steel springs with nominal deflections of 25mm and 50mm and up to 50% overload capacity
  • Vertical and lateral restraints have hold down bolts in steel housing with large diameter rubber snubbers to avoid any metallic contact and to provide adequate radial clearance to ensure vibration isolation efficiency is not impaired
  • Equipments can be leveled since working height and vertical limiting stops are fully adjustable
  • Cross ribbed rubber acoustic seating pad prevents skidding and transference of high frequency vibration and sound

TYPICAL APPLICATIONS

  • AIR HANDLING UNITS
  • COOLING TOWERS
  • CHILLERS & CONDENSERS
  • BOILERS & LARGE FANS

ACTIVE ISOLATION of large size rotating machines with or without inertial block running at speeds down to 350 rpm and developing very high dynamic forces (unbalance, short-circuit, couples) such as

  • CENTRIFUGES
  • FORGING HAMMERS
  • COMPRESSORS
  • PUMPS
  • CRUSHERS
  • PRESSES
  • FANS
  • PILE-DRIVERS
  • ETC., ETC.
