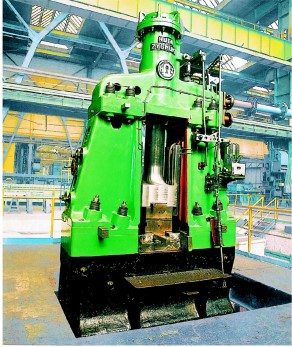

Bharat Forge was facing problem with their 400 KJ Forging hammer. The hammer
was tilted from its base.
For isolation of Forging Hammer, the customer was previously using 2-Stage
vibration isolation, which included Anti Shock Mat, Inertial block and Spring Damper
system.

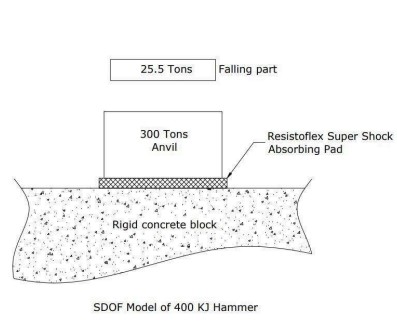

Bharat Forge contacted Resistoflex, and we recommended a single stage solution with Resistoflex Super Shock Absorbing Pad with 11-layered stack below the anvil and reinforced concrete block specially designed by structural team.
The customer has removed Spring Damper system.
The effective isolation achieved after using 11 layered Resistoflex Super Shock absorbing pad is approximately 60 to 70% of impact force generated by hammer.
