PLATFORM VIBRATION ISOLAOR

PLATFORM ISOLATORS are extremely useful type of flexible support designed primarily for light loads for excellent isolation of steady state Vibrations plus occasional Shocks while providing moderate lateral restraint. Mountings are approximately twice as stiff radially as axially, offering excellent stability.
The contour of the flexing element is designed to provide uniform stress distribution.
Elastomer is specially compounded to meet wide range of environment conditions. Isolators have a very high ratio of bond strength to working stress.

DESIGN FEATURES

Mounting consists of a rectangular metal plate for the outer member which is embedded in and bonded to the rubber at right angles to the tubular centre metal member so that the supported device may be bolted through it.
The outer square plate may be attached to the supporting structure with rivets or screws or even by clamping. Snubbing washers are recommended as they will form an interlocking system of metal parts, which will limit and cushion excessive movement from overload or shock, resulting in positive safety. Compact, High Bond strength, Specially Compounded Elastomer Simplified Design Assures Long Term Maintenance Free Service.

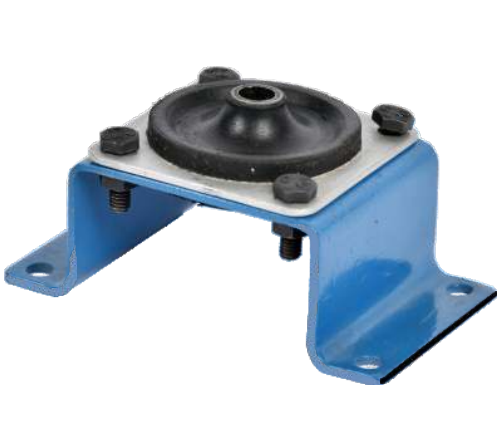

Platform Vibration Isolator Image 1

TYPICAL APPLICATIONS
