OPEN SPRING UNIT MOUNT

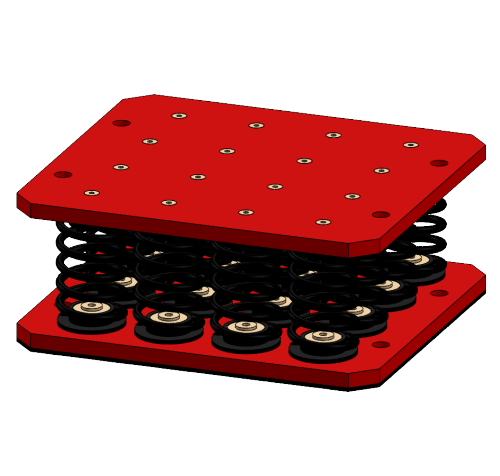

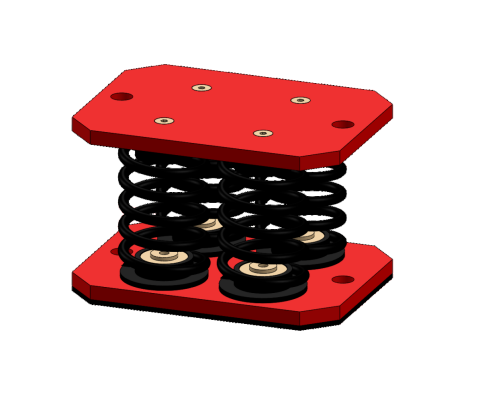

Resistoflex Open Spring Unit Mounts are designed for Vibration Isolation of equipments subjected to weight variations and large external forces.

This unique range of Open Spring Unit Mounts uses integral rubber end fixing of the springs which set them apart from all other designs. Loose springs and plates are now history and high frequency noise attenuation is provided regardless of whether a rubber seating pad is used or not.

OSU Mounts are ideal for large or heavy equipments mounted on structural frames or concrete bases on roof tops even in wind prone areas due to the integral vertical force.

Signature Signature

DESIGN FEATURES

  • Unique expanding rubber end fixing of springs which also provides high frequency attenuation.
  • Nominal 25mm deflection colour coded springs with 50% overload capacity.
  • Can be bolted to supporting structure or free standing on 6mm thick square cell rubber pad.
  • High Strength all steel construction with epoxy coated finish for corrosion resistance and zinc plated fixings.
  • Large laterally stable colour coded epoxy coated helical steel springs with nominal deflections of 25mm and up to 50% overload capacity.

TYPICAL APPLICATIONS

  • AXIAL AND CENTRIFUGAL FANS
  • AIR HANDLING UNITS
  • LOW LEVEL PIPEWORK
  • WITH INERTIA BASES TYPE IPF FOR PUMPS, GENERATING SETS AND COMPRESSORS ETC.
