JACK - UP FLOOR SYSTEM

RESISTOFLEX Jack – Up Floor System is a fool proof, safest & most convenient method of creating from a minimum of 80 mm, 100 mm standard & upto150 mm special floating floor by just turning bolts.

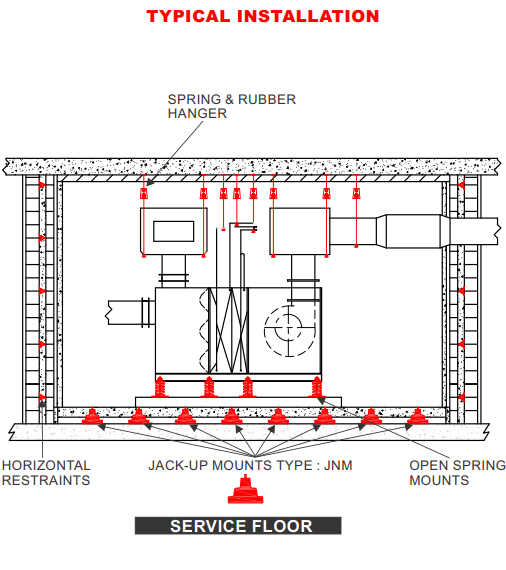

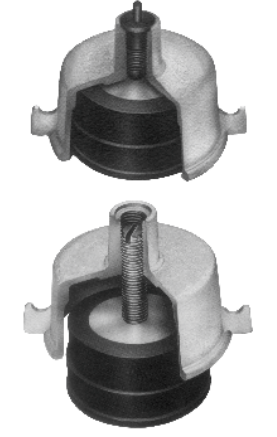

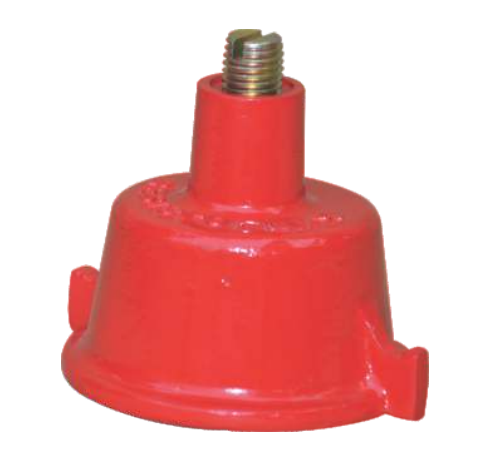

Jack-Up Mount Style JNM consists of a bell shaped housing(with M20 bolt) which shrouds time proven, exposure proof, 50 mm thick stable resilient NEOPRENE element with negligible creep & permanent set to support the weight & simultaneously provide the desirable positive & clear air gap from minimum of 25 mm, standard 50 mm or up to 100 mm special.
The spacing of Jack – Up Mounts is determined by the thickness of floor slab & reinforcing system, it can normally be up to 1200 mm in both the directions.
Reinforcing bars or wire mesh can be very easily supported on integral external lugs of the bell housing at about 25 mm from bottom.

Signature

SIMPLE MODE OF INSTALLATION

  • Prepare smooth & level sub-floor.
  • Cover the entire area with polyethylene plastic sheeting to act as a concrete release layer. Seal all joints with waterproof tape.
  • Place Jack-Up Mounts with rubber plug in position on plastic sheeting.
  • Lay steel reinforcing bars or steel mesh.
  • Pour concrete monolithically.
  • After the concrete is fully set, remove rubber plugs & insert adjusting bolts.

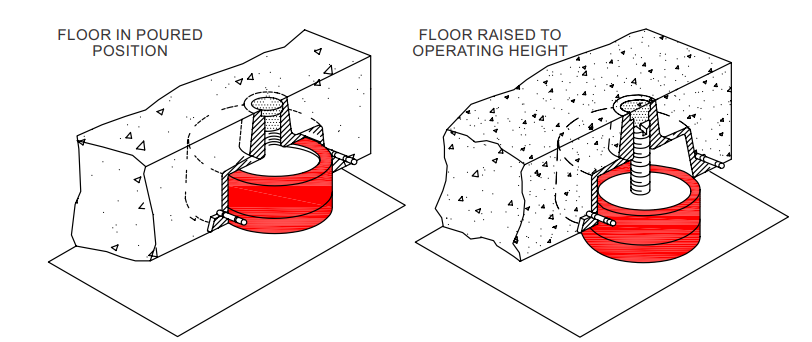

  • Turn adjusting bolts to lift the floor slab to the operating height to create the required air gap.
  • Grout flush adjusting bolt holes.
Signature

TECHNICAL CHARACTERISTICS

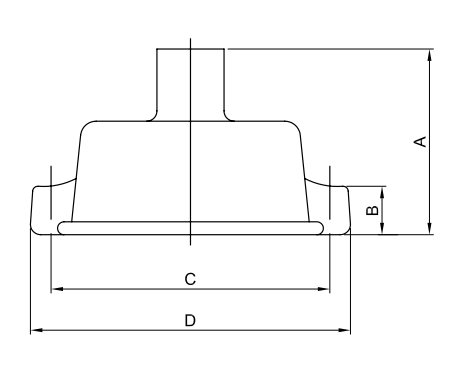

S.No. CODE RATED LOAD (kgs) DEFLECTION ±15% (mm) NOMINAL DIMENSIONS mm
A B C D
1 JNM-225/40 225 8 100 25 118 140
JNM-315/50 315 8 100 25 118 140
JNM-405/60 405 8 100 25 118 140
JNM-590/50 590 8 100 25 118 140
JNM-770/60 770 8 100 25 118 140
2 JNM-1270/50 1270 8 100 25 136 160
JNM-1590/60 1590 8 100 25 136 160
