FLEXICONE ISOLATOR
LOAD CAPACITY UPTO 4000 KGS DEFLECTION UPTO 45 MM + 15%

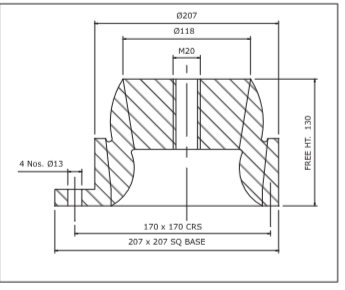

High grade annular Rubber ring is sandwiched & chemically bonded between a bottom rectangular flanged tapered outer ring with 4 holes for bolting to the supporting structure and an inner tapered core with centrally tapped hole to take bolt from mounted equipment to form a easily fitted compact pedestal type Isolator.

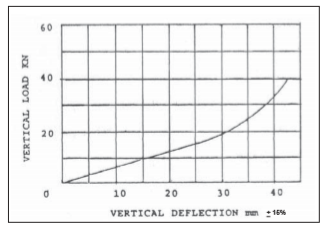

Rubber is loaded in shear & compression for optimum load deflection characteristics linear upto 50% and thereafter-steep increase in stiffness enabling Isolator to accept large transitory Shocks.
Isolator has same stiffness in all the radial directions, which make it highly suited for mobile applications.
