30º ANGULAR MOVEMENT

Small bore piping system present alignment, thermal expansion and noise & vibration transmission problems resulting in prestressed pipe lines susceptible to pre-mature failures. Highly flexible bellows with screwed ends alleviates these stresses.

Signature

TYPICAL APPLICATIONS:

Building / HVAC / Plumbing equipment’s, piping systems for industrial plants & private residences.

USED IN

  • Air Conditioning Systems
  • Chemical Lines
  • Circulating Water Lines
  • Compressor Lines
  • Pipelines
  • Paper Stock Lines

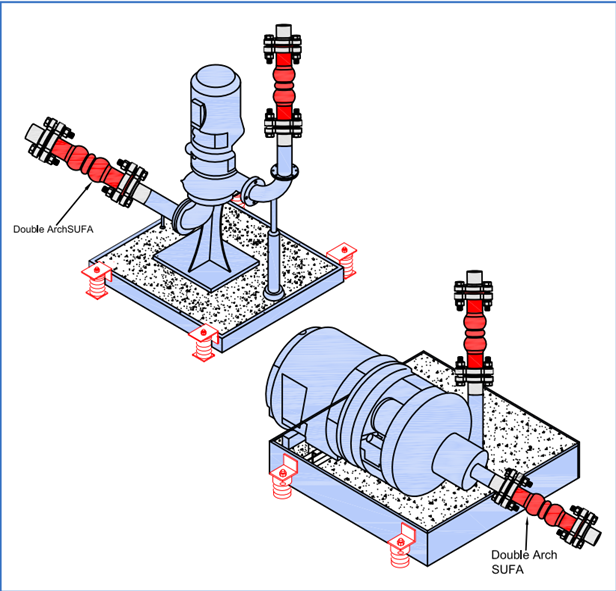

  • Pump-Suction and Discharge
  • Refrigeration Lines
  • Swimming Pools
  • Solar Technologies
  • Water & Waste Treatment Plants

MARINE INSTALLATIONS

  • Air Intake on Diesel Engines
  • Ballast
  • Between Scoop and Condenser
  • Circulating Lines to Condenser
  • Fog Foam Lines
  • Fire and Bilge Pump Lines
  • Forced Draft
  • Overboard Discharge
  • Sanitary System
  • Ventilation Lines

ADVANTAGES

  • Absorb Pipe Movements
  • Isolate Vibration
  • Reduce Noise
  • Protect Against Start-up Surge Forces
