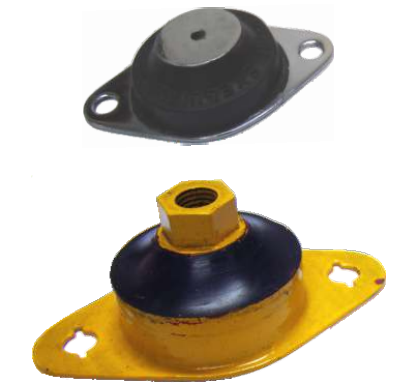

EQUIFLEX MUNT (EF)
RESISTOFLEX EQUIFLEX ISOLATORS have been designed with almost same stiffness Characteristics, both in vertical (axial) and horizontal (radial) direction. They provide high Vibration & Shock Isolation efficiencies for stationary and mobile applications having little space for flexible mountings.
DESIGN FEATURES
LOAD/MOUNT DEFLECTION
3 TO 220 KGS 0.38 TO 10MM
Isolators can be loaded axially only.
Isolators can be easily used in Tandem
for double deflection to Isolate low
frequency disturbances.
For stationary application where there are no horizontal forces and the center of gravity is also low, Isolators can be provided with a thin non-skid soft layer, adhesive bonded to the bottom plate, for free standing for the mounted equipment to avoid the usual need of bolting.
