ENCLOSED SPRING MOUNTS

A unique range of mountings designed primarily for building services applications where the control of low frequency vibration and noise emanating from mechanical plant is of paramount importance.

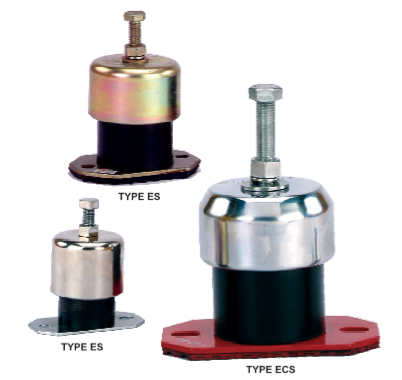

The benefits of a combined rubberand steel housing for the spring have help edestablish the ES and ECS mountings as industry standards accepted by specifiers, equipment manufacturers and mechanical services installers a like.

Signature Signature

DESIGN FEATURES

  • Nitrile rubber (oil resistant) lower spring housing eliminates the possibility of metallic continuity and ensures excellent acoustic performance. Steel reinforced on ECS range.
  • Full enclosed captive assembly protects the spring and controls transient motion.
  • All steel components zinc plated
  • Spring with nominal deflections of 20, 25 & 50 mm, laterally stable and with 50% overload capacity
  • Simple single bolt height adjustment
  • Spring viewing/inspection hole and ribbed rubber seating pads available for ES25 and ECS ranges
  • Colour coded labels for easy identification

TYPICAL APPLICATIONS

  • Axial and Centrifugal Fans
  • Air Handling Units

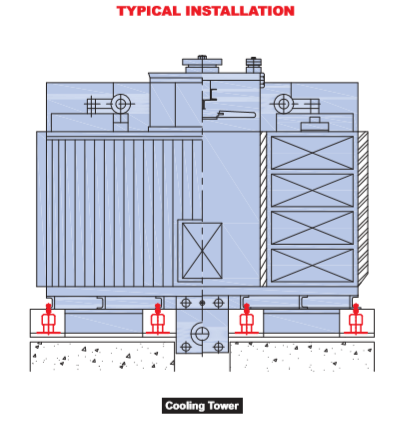

  • Chillers and Cooling Towers
  • Rotary and Multi Cylinder Compressors
  • Diesel Generating Sets (ECS only)
  • Mechanical Test Rigs
  • Isolation of Sensitive Equipment
