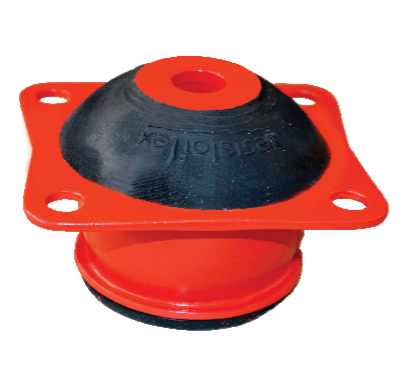

CONIFLEX RUBBER MOUNTINGS
The configuration of high grade annular elastomer sandwiched and chemically bonded between outer tapered flanged part and tapered inner core is such that it acts in a combination of compression & shear to give comparatively softer elasticity in the axialdirection.
In the radial direction, elastomer is under direct compression. The radial stiffness is many times more than axial stiffness at the working range which also increases at higher lateral loads. This characterstics allows the Coniflex lsolator to accept large transitory shocks which make them particularly useful as elastic support for a very wide variety of machinery which are susceptible to large radial oscillations forces plate Will Progressively Absorb Large Vertical at the rated load.
LOAD/MOUNT DEFLECTION
UPTO525KGS UPTO6.5MM
Coniflex Isolator can be furnished with additional Stop Plates for preventing any failure due to excessive over load. The Top Plate will progressively absorb large vertical movement (acceleraration : downward compression) by resting on the upper rubber shoulder. If deceleration (upward rebound) is very high, inner cone will be deflected only until the bottom stop plate comes up against lower collar on the outer cone.
For very low frequency Vibration Isolation, the isolator can be placed in tandem (one over the other) thus giving double deflection at the rated load.
