This unique range of Open Spring Mountingsusesintegralrubberendfixingof the springs which set them apart from all other designs which set them apart from all otherdesigns.Loosespringsandplatesare now history and high frequency noise attenuation is provided regardless of whetherarubberseatingpadisusedornot.
The OS Mountings are widely used to isolate vibration from every conceivable type of rotating and reciprocating machine. Where control of transient motion is required Open Spring Mounting can be used in conjuction with our Viscous DabpersTypeSFD.
DESIGNFEATURES
- Unique expanding rubber end fixing of springs (Patent applied for) which also provideshighfrequencyattenuation.
- Nominal 20, 25 & 50 mm deflection colour coded springs with 50% overload capacity and O/D equal to atleast 80% of the spring compressedheightatratedload.
- Can be bolted to supporting structure or free standing on cross ribbed acoustic rubberpad.
- Fullyheightadjustable(OS25&50).
- Zincplatedmetals.
- Nosnubbinggivesmaximumefficiency
TYPICALAPPLICATION
- AXIAL ANDCENTRIFUGALFANS
- AIRHANDLINGUNITS
- LOW LEVEL PIPEWORK

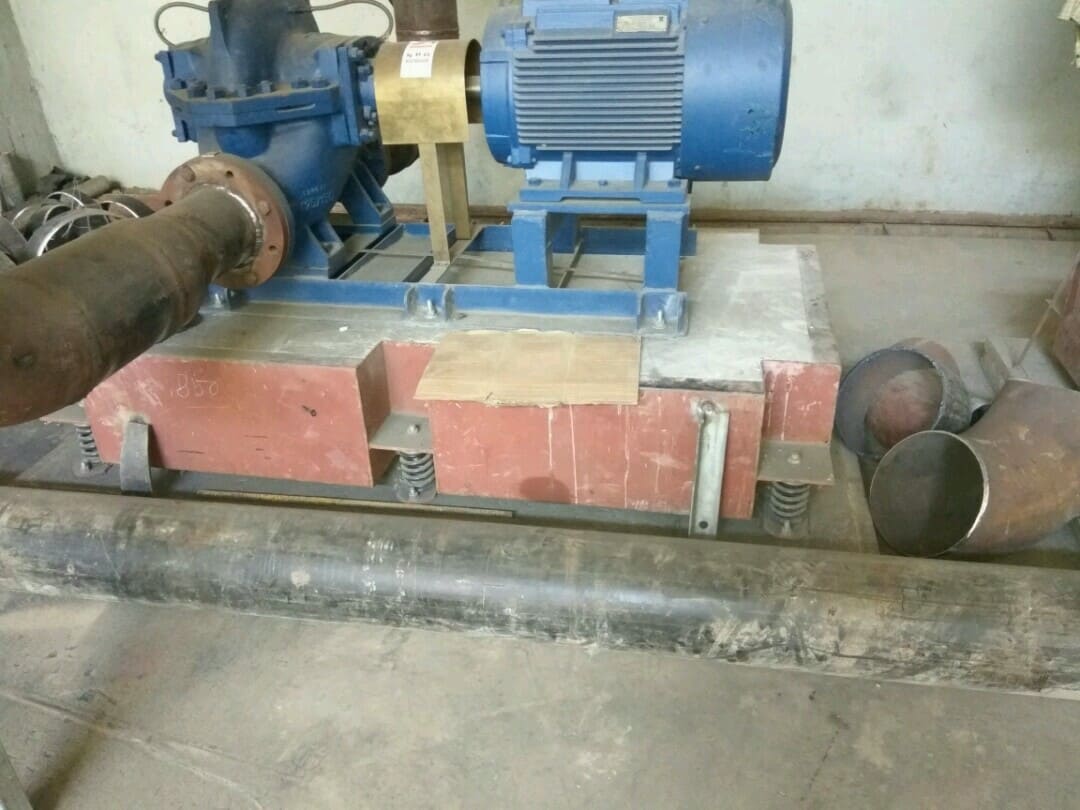

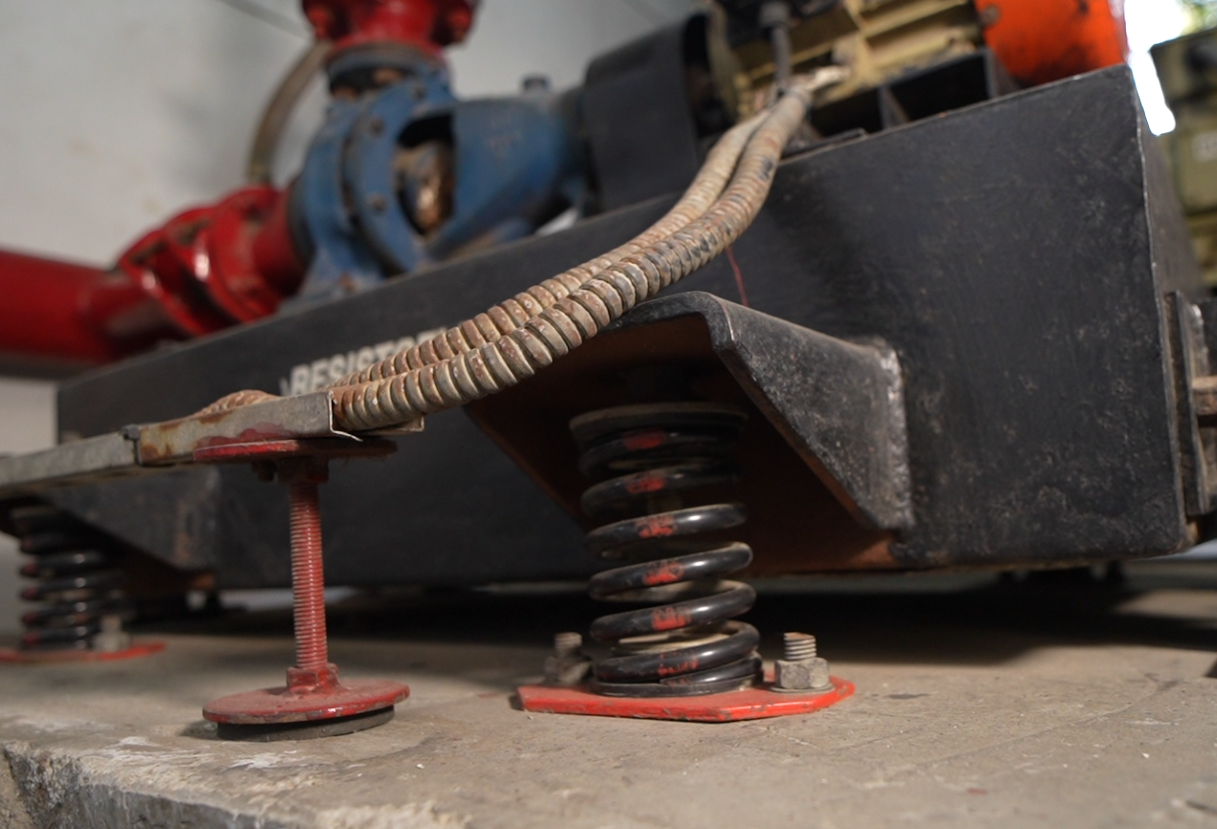

- WITH INERTIA BASES TYPE IPF FOR PUMPS, GENERATING SETS AND COMPRESSORSETC.
